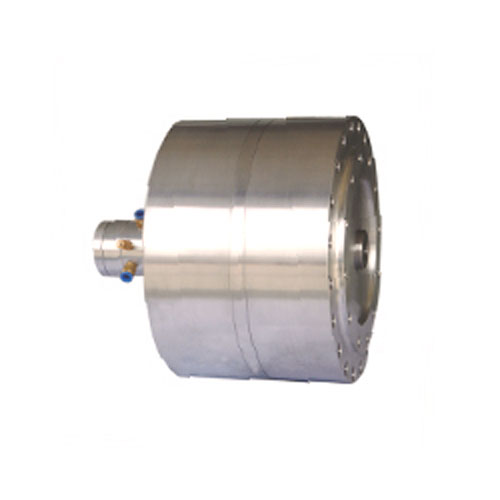

產品：P21A
產品特性:
■特點：
☆是K50、K51型楔式動力卡盤的配套動力源裝置，也可作其它夾具的動力源。
☆本品采用鋁合金材料，重量輕，體積小，起動快，推拉力大。
☆配氣閥采用滾動軸承支承，潤滑方便。
■Specificity:
☆The series is complementary to the K50、K51 wedge-type power chucks as well as the other clampings.
☆The products are made of aluminium alloy , with light weitht , small volume , started quickly , and high pushing force.
☆The pneumatic valve is supported with rolling bearings and lubricated easily.
產品詳情

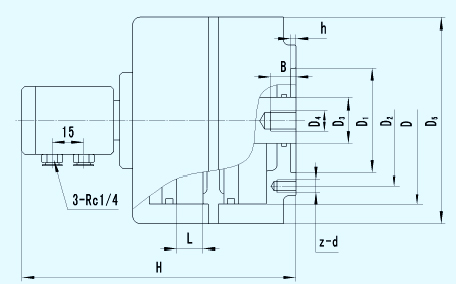

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
B
|
h
|
H
|
z-d
|
|
200
|
200
|
125
|
160
|
44
|
M22
|
238
|
30
|
5
|
278
|
8-M12
|
|
250
|
250
|
160
|
200
|
44
|
M24
|
288
|
32
|
5
|
290
|
12-M12
|
■性能參數 Characteristic Parameters
|
規格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
最大推拉力kN
Max. draw pull
|
凈重Kg
Net WT
|
|
200
|
597
|
30
|
0.8
|
2500
|
35
|
13
|
|
250
|
950
|
35
|
0.8
|
2000
|
57
|
16
|
|
