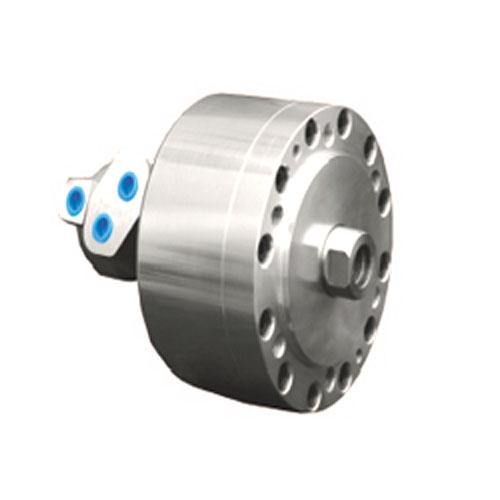

產品：P22
產品特性:
■特點：
☆不通孔回轉油缸。
☆油缸采用優質鋁合金材料，體積小，重量輕，高速運轉時慣性小，主軸平穩性好。
☆是數控車床的理想動力源。
■Specificity:
☆The cylinders are non-through-hole rotating hydraulic ones.
☆The cylinders are made of high quality aluminium alloy, with small volume, light weithg , high speed, low moment of inertial and high stability of the spindle while high-speed rotating.
☆I(lǐng)t is the ideal power source of the CNC lathes.
產品詳情

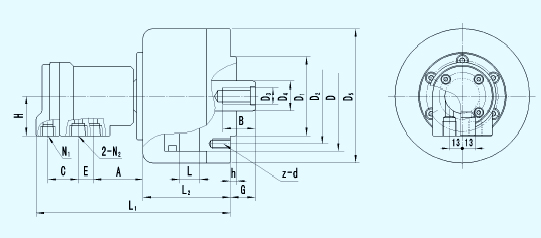

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
z-d
|
B
|
h
|
H
|
G
|
L1
|
L2
|
A
|
E
|
C
|
N1
|
N2
|
|
max
|
min
|
|
80
|
80
|
65
|
90
|
M16
|
30
|
115
|
6-M8
|
30
|
6
|
40
|
45
|
30
|
183.5
|
78
|
48
|
15
|
31
|
Rc1/4
|
Rc3/8
|
|
100
|
100
|
80
|
100
|
M16
|
30
|
135
|
6-M10
|
30
|
6
|
40
|
45
|
25
|
194.5
|
89
|
48
|
15
|
31
|
Rc1/4
|
Rc3/8
|
|
125
|
125
|
110
|
130
|
M20
|
36
|
160
|
6-M12
|
40
|
6
|
40
|
50
|
25
|
201.5
|
96
|
48
|
15
|
31
|
Rc1/4
|
Rc3/8
|
|
150
|
150
|
110
|
162
|
M24
|
36
|
180
|
6-M10
|
40
|
5
|
40
|
55
|
25
|
203.5
|
98
|
48
|
15
|
31
|
Rc1/4
|
Rc3/8
|
|
160
|
160
|
110
|
130
|
M24
|
36
|
200
|
6-M12
|
40
|
6
|
40
|
55
|
20
|
214
|
109
|
48
|
15
|
31
|
Rc1/4
|
Rc3/8
|
|
200
|
200
|
125
|
160
|
M30
|
45
|
245
|
6-M16
|
50
|
6
|
45
|
60
|
25
|
216
|
124
|
50
|
11
|
-6
|
Rc1/4
|
Rc3/8
|
|
250A
|
250
|
160
|
200
|
M36
|
60
|
295
|
6-M20
|
55
|
6
|
40
|
85
|
40
|
233
|
141
|
50
|
11
|
-6
|
Rc1/4
|
Rc3/8
|
■性能參數 Characteristic Parameters
|
規格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
最大推拉力kN
Max. draw pull
|
凈重Kg
Net WT
|
|
80
|
43
|
15
|
3.5
|
5500
|
14
|
3.5
|
|
100
|
71
|
20
|
3.5
|
5000
|
22
|
5
|
|
125
|
110
|
25
|
3.5
|
5000
|
35
|
7
|
|
150
|
165
|
30
|
3.5
|
4500
|
52
|
9
|
|
160
|
189
|
35
|
3.5
|
4500
|
58
|
11
|
|
200
|
296
|
35
|
3.5
|
4000
|
93
|
19
|
|
250A
|
458
|
45
|
3.5
|
3000
|
144
|
37
|
|
