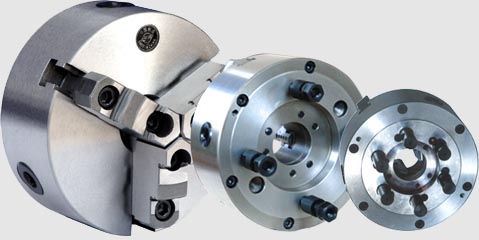

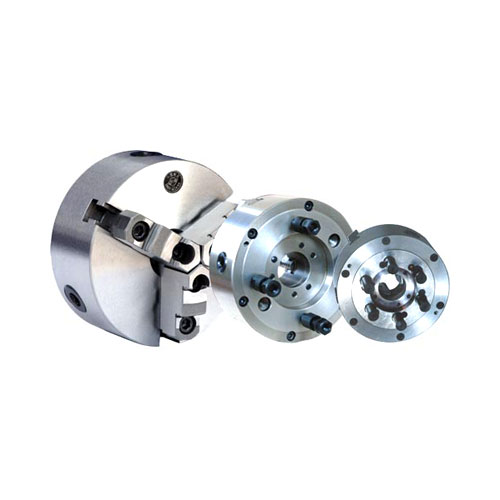

產品：K11口/口
產品特性:
■特點：
☆與機床主軸直接連接，剛性好，精度高。
☆短錐連接形式有A1、A2、C、D四種，短錐連接參數符合GB/T5900.1－GB/T5900.3（ISO702）標準。
☆卡爪結構形式分為整體爪、A型分離爪、C型分離爪、D型分離爪、E型分離爪。
☆按盤體材質分為：灰鑄鐵（K11口/口）、球墨鑄鐵（K11口/口（GT））、鋼盤體（K11口/口（G））三種，球墨鑄鐵和鋼盤體適應較高轉速。
■Specificity:
☆Mounted directly with the machine spindle nose and with nice rigidity and high accuracy.
☆The chuck mounting types are classified as form A1、A2、C、D.The connecting dimensions conform to GB/T5900.1－GB/T5900.3（ISO702）standards.
☆The structure types of jaws are classified as one-piece jaws ,two-piece jaws for form A 、form C、form D and form E.
☆The body materials are classified as gray case iron（K11口/口）,nodular cast iron（K11口/口（GT）） and steel（K11口/口（G））, the body of nodular cast iron and steel is suitable for higher rotation-speed.
產品詳情
■短錐卡盤性能參數 Short-taper Chucks Characteristic Parameters
|
卡盤規格
Size
|
最大輸入扭矩Nm
Max. input torque
|
極限轉速r/min
Max.speed
|
|
灰鑄鐵
Gray cast iron
|
球墨鑄鐵
Nodular cast iron
|
鋼
Steel
|
|
125
|
100
|
3000
|
3800
|
4900
|
|
160
|
160
|
2500
|
3000
|
3800
|
|
200
|
250
|
2000
|
2500
|
3000
|
|
250
|
320
|
1600
|
2000
|
2400
|
|
315 325
|
400
|
1200
|
1500
|
1900
|
|
380 400
|
500
|
1000
|
1200
|
1500
|
|
500
|
630
|
800
|
1000
|
1200
|
|
630
|
800
|
600
|
800
|
1000
|
|
800
|
1000
|
500
|
600
|
800
|
|
1000
|
1200
|
400
|
500
|
600
|
|
1250
|
1300
|
320
|
400
|
500
|
■短錐卡盤產品規格與主軸端部配套選擇一覽表Selection Table for No. of Spindle Noses to Short –taper Chucks
|
卡盤規格
Size
|
系列 Series No.
|
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
連接形式 Mtg. form
|
|
A1
|
A2
|
C、D
|
A1
|
C、D
|
A1
|
A2
|
C、D
|
|
主軸頭號 Short-taper No.
|
|
125
|
—
|
—
|
3
|
—
|
4
|
—
|
—
|
—
|
|
160
|
—
|
—
|
4
|
—
|
5
|
—
|
—
|
3
|
|
200
|
5
|
—
|
5
|
6
|
6
|
—
|
4
|
4
|
|
250
|
6
|
—
|
6
|
8
|
8
|
5
|
5
|
5
|
|
315
|
8
|
—
|
8
|
—
|
11
|
6
|
6
|
6
|
|
400
|
11
|
—
|
11
|
—
|
15
|
8
|
8
|
8
|
|
500
|
15
|
—
|
15
|
—
|
—
|
11
|
11
|
11
|
|
630
|
15
|
15
|
15
|
—
|
20
|
—
|
11
|
11
|
|
800
|
-
|
20
|
-
|
-
|
-
|
-
|
-
|
-
|
|
1000
|
-
|
20
|
-
|
-
|
-
|
-
|
-
|
-
|
|
1250
|
-
|
28
|
-
|
-
|
-
|
-
|
-
|
-
|
產品備注
注：根據用戶需求，還可配特殊爪。
We also can meet customer’s special order.
|
